Groundwater treatment system
HGW series

Treating obtained groundwater to meet the quality standards of tap water

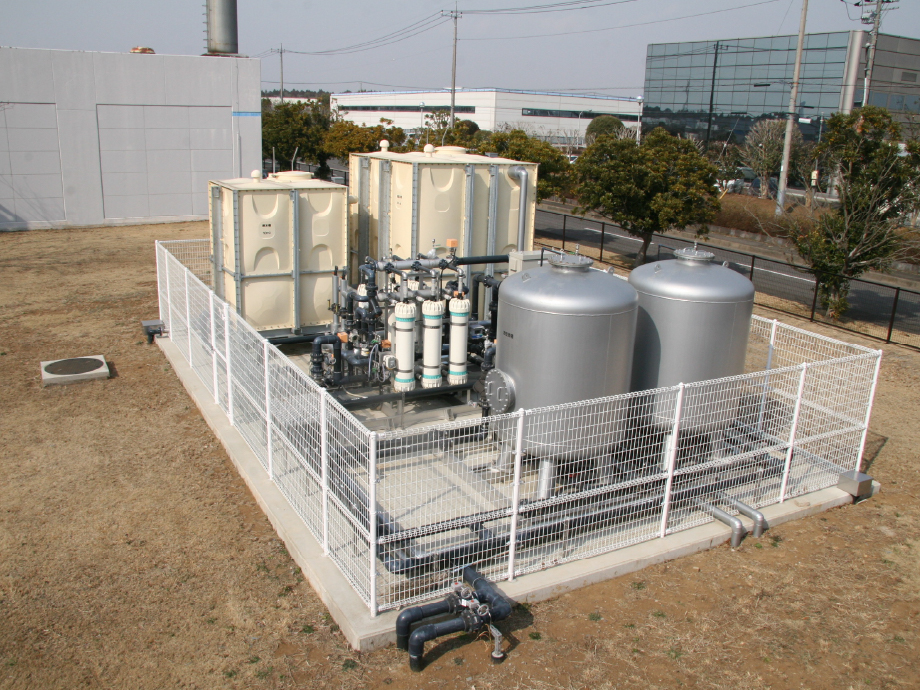

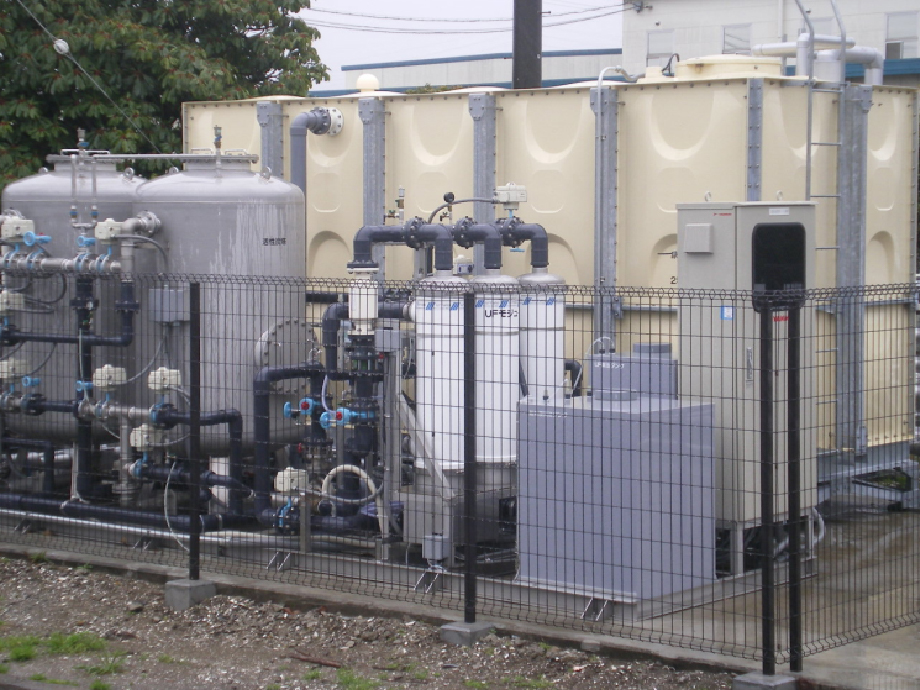

The HGW series is a system that treats groundwater to meet the quality standards of city water (tap water) or higher. This system removes iron and manganese from feed water pumped from deep wells, then filters it through activated carbon, and finally filters it through the UF membrane module to remove not only fungi but also viruses. The system is ideal for food factories that use a large amount of tap water and general hospitals that need to secure safe water in case of a disaster. It removes not only iron and manganese unique to groundwater, but also bacteria and viruses. Our product lineup is available with three-stage models according to the water production volume.

Contact

Features

  • All equipment required for groundwater treatment packaged in one system

    Based on our extensive knowledge as a membrane manufacturer, we provide a packaged system containing all equipment required for groundwater treatment. This system minimizes the effort required for equipment selection.

  • Using certified membrane modules manufactured by us

    This system uses certified products manufactured by us: domestically approved UF membranes that have acquired “ISO 9001.”
    In addition, it has a track record of proven performance in membrane treatment facilities at water purification plants in Japan.

  • Included maintenance services bring peace of mind

    Our service does not end at the completion of the installation of this system, but it includes a maintenance contract to ensure proper use.
    Replacement for consumables and inspection on behalf of customers reduces labor hours required for management on the customer-side.
    It also has a remote monitoring function, with which peace of mind is assured in case of trouble.

Flow Diagram of the HGW Series

  • 1

    Adding chlorine to groundwater

    This ensures efficient mass production and stable quality.

  • 2

    Removal of iron and manganese

    The system filters and removes iron and manganese flocculated by chlorine.

  • 3

    Absorption and filtration with activated carbon

    Impurities such as chromaticity, turbidity, and organic matter are adsorbed and removed by activated carbon.

  • 4

    Filtration with UF membrane module

    The UF membrane (ultrafiltration membrane) module, which is also used in water purification plants, removes bacteria and viruses.

  • 5

    Chlorine injection to meet tap water quality standards

    Chlorine is injected so that the residual chlorine concentration meets the value (0.1 mg/L or more) specified by the Water Supply Act.

  • 6

    Periodic backwashing

    The pretreatment filter tower and the UF membrane module are periodically backwashed automatically.

Specifications

Model HGW-3 HGW-6 HGW-9
Treatment capacity 3 tons/h 6 tons/h 9 tons/h
Number of UF modules (FN20) 2 4 6
Iron and manganese removal tower Ф600 Ф800 Ф900
Activated carbon filter tower Ф600 Ф800 Ф900
Circulation pump 1.1kw 2.2kw 3.7kw
Backwash pump 1.5kw 3.7kw 5.5kw
Backwash tank 2 tons 4 tons 6 tons

Upon installation, we will provide you with the optimal solutions based on detailed consultations.
Please contact us if you have any questions.
