MOLSEP®
Unit type pure water production system
RO series

Water production volume
250 to 2,600
L/hr

Contributing to manufacturing of advanced pure water used in manufacturing processes

The pure water production system RO series for industrial use packages all the equipment required for pure water supply into a single unit, eliminating the need to select detailed specifications.
Our product lineup can be selected according to the water production volume. And, two models are available according to the application and the water quality required. In addition, other options are available.

Contact

Features

  • Two models to choose from according to the water quality and application

    Two models are available: the HP model, which uses purified-grade water, and the simple DM model.
    You can choose according to your desired water quality.

  • Necessary equipment packaged in one system

    All equipment required for pure water production is packaged into a unit. Reduces the time required to select equipment.

  • Unit design reduces costs and ensures short delivery times for peace of mind

    Thanks to its base design, the purchase and manufacturing costs are reduced to realize a low price.
    In addition, this is a general-purpose product designed according to the water production volume, resulting in shorter delivery times.

  • Trusted at medical sites, powered by technology developed for energy-saving water sprinkling systems

    Our dialysis water purifying apparatuses, which are the basis of the development of the HP model, have been installed at medical sites in Japan at more than 1,000 locations. Widely used and trusted throughout the medical industry.
    The DM model was developed based on the E mizu Shower System patented as a compact water sprinkling system for outdoor units.

  • Options available upon request

    Optional functions corresponding to required water quality grades are available.

Model introduction

  • For sites requiring pyrogen removal

    HP models

    Highly Purified Water Model

    Pretreatment + Water softener + RO membrane
    + UF membrane

    We have released water purifying apparatuses for artificial dialysis for industrial use. The UF membrane module installed at the latter stage of the RO membrane module removes pyrogens and endotoxins to supply safe water (LRV5 or higher). Recommended for producing water for medical raw material production and laboratory water.
    The water quality conforms to the Standards for Purified Water of the Japanese Pharmacopoeia; the RO series can be designed to achieve conductivity of 2.1 μS/cm or less and 95% reduction of endotoxins.*

    • *Depending on our proposal including options

    Applications

    • For producing water for production of medical materials and cosmetics

    • For producing laboratory water and water for prototyping

  • For sites where scale and minerals need to be removed

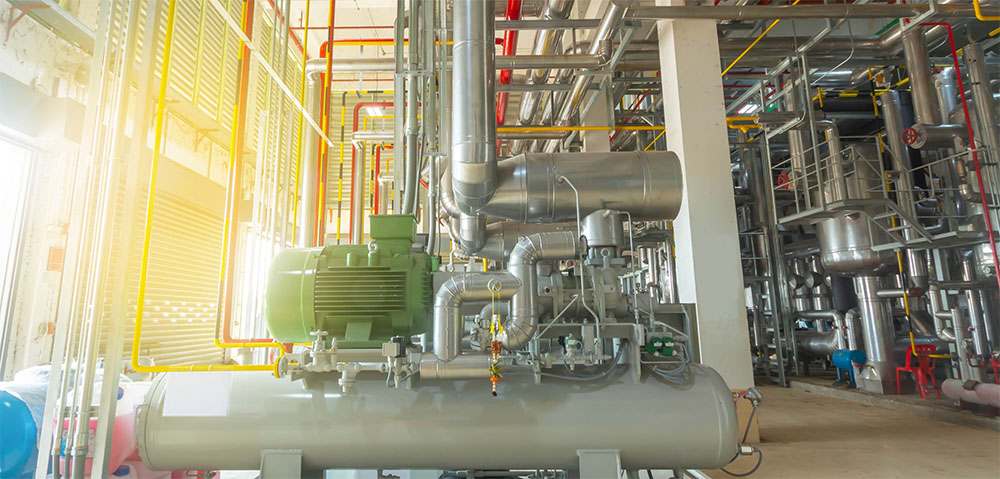

    DM models

    Demineralized Water Model

    Pretreatment + RO membrane

    Reliably removes impurities ionized by the RO membranes. Removes hardness components from raw water with a minimal system configuration. Ideal not only for working with manufacturing equipment like a boiler and sprayers, where scale buildup is likely during water supply, but also for removing minerals to make it easier for additives to dissolve in extraction solutions and solvents.
    The simple structure reduces introduction costs. No chemicals are needed, and running costs are low.

    Applications

    • For producing water for food production and extraction water

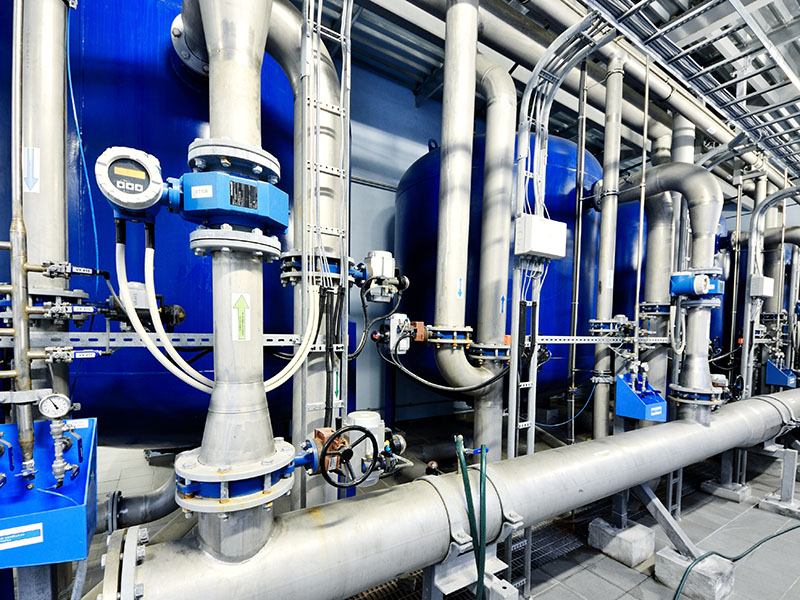

    • For producing cooling water

Flow Diagram of RO series

  • HP models
  • DM models
  • Flow Diagram

    Optional Specifications

    • Reuse of concentrated wastewater by adding UF membranes

      The UF membrane module purifies the water concentrated by the RO membrane module to return it to the feed water tank. About 30% of tap water is saved.

    • Adding UF membranes to pretreatment

      Adding a UF membrane module before the water softener extends the expected service life of the RO membrane module.

    • Adding a hot water disinfection function

      The system has heat resistance, which allows for hot water disinfection within the dotted line area.

    • Adding an EDI/Ion exchange tower

      Adding an EDI or Ion exchange tower after the RO water tank further enhances the water quality.

  • Flow Diagram

    Optional function

    • Raw water tank

      The DM-400/600/800 does not include a raw water tank. If necessary, we can install it as an optional service. The DM-1000/2000 includes it as standard.

Specifications

  • HP models
  • DM models
  • Item RO-250 RO-500 RO-1200 RO-1700 RO-2000 RO-2600
    Permeate water flow rate (L/h) at 25°C 250 500 1,200 1,700 2,000 2,600
    RO module (pieces) 4inch×1 4inch×2 8inch×1 8inch×2 8inch×2 8inch×2
    Prefilter (10μ) (pieces) 500mm×1 500mm×1 750mm×1 750mm×1 750mm×1 750mm×3
    Water softener (L) 28 28 50 50 80 150
    Activated carbon filter (10μ) (pieces) 750mm×1 750mm×1 750mm×3 750mm×3 750mm×4 750mm×6
    Activated carbon equipment (L) ＊optional function ‐ - 50 50 80 150
    UV germicidal lamp (immersion type) (W) 25W 25W 25W 25W 25W 25W
    UX system (pieces) 1 1 1 2 2 2
    Power supply Three-phase,200V(kw) 3.638 3.638 5.148 6.222 6.635 7.635
    MCB breaker(A) 40 40 50 75 75 75
    Power source for control Three-phase,200V(kw) 1 1 1 1 1 1
    MCB breaker(A) 15 15 15 15 15 15
    Connected piping Feed water inlet(A) 25 25 25 25 32 32
    Permeate outlet(A) 20 20 20×1 20×2 20×2 20×2
    Drain outlet(A) 40 40 40×2 40×2 40×2 40×2
    Dimensions (W×D×H)
    Number of operating weight　
    Number of units    		 Nominal dimensions 650×1,080×
    1,800    		 650×1,080×
    1,800    		 1,300×1,030×
    1,800    		 1,300×1,100×
    1,800    		 1,300×1,100×
    1,800    		 1,800×1,100×
    2,050
    Operating weight(kg)/
    Number of units(pcs)    		 720 / 1 730 / 1 1,150 / 2 1,270 / 2 1,330 / 2 1,620 / 3
    Dimensions with
    feed water tank    		 - - 1,300×1,100×
    1,800    		 1,700×1,100×
    1,800    		 1,700×1,100×
    1,800    		 1,950×1,100×
    2,050
    Operating weight(kg)/
    Number of units(pcs)    		 - - 1,400 / 2 1,630 / 3 1,770 / 3 1,940 / 3
    Required feed water flow rate (L/H) 500 900 2,000 2,900 3,300 4,300

    • Treated water quality

      Conforms to the Standards for Purified Water of the Japanese Pharmacopoeia Eighteenth Edition

    • Feed water conditions

      Total hardness: 60 ppm or less, silica component: 25 ppm or less, total chlorine: 0.5 ppm or less, feed water pressure: 0.15 to 0.3 MPa

  • Item DM-400 DM-600 DM-800 DM-1000 DM-2000
    Permeate water flow rate (L/h) at 25°C 400 600 800 1,000 2,000
    RO module (pieces) 4inch×2 4inch×3 8inch×1 8inch×1 8inch×2
    Prefilter (10μ) (pieces) 750mm×1 750mm×1 750mm×1 750mm×1 750mm×2
    Activated carbon filter (10μ) (pieces) 750mm×1 750mm×1 750mm×3 750mm×2 750mm×4
    UV germicidal lamp (immersion type) (W) 25W 25W 25W 25W 25W
    Raw water tank - - - 250L×1 250L×1
    RO water tank 180L×1 180L×1 180L×1 300L×1 300L×1
    Power source Three-phase, 200 V, 30 A Three-phase, 200 V, 30 A Three-phase, 200 V, 30 A Three-phase, 200 V, 50 A Three-phase, 200 V, 50 A
    Power consumption 3.5kwh 3.5kwh 3.5kwh 4.6kwh 4.6kwh
    Connected piping Raw water (A) 25 25 25 25 25
    Treated water (A) 25 25 25 25 25
    Dimensions (W×D×H) 800×1,600×
    2,300    		 800×1,600×
    2,300    		 800×1,600×
    2,300    		 1,600×1,600×
    2,300    		 1,600×1,600×
    2,300
    Operating weight(kg) 1,050 1,100 1,150 1,800 1,920
    Required feed water flow rate (L/H) ≧800 ≧1,200 ≧1,600 ≧2,000 ≧4,000

    • Raw water conditions

      Total hardness: 60 ppm or less, silica component: 25 ppm or less, total chlorine: 0.5 ppm or less,
      raw water pressure: 0.15 to 0.3 MPa

    • Treated water quality

      Item Treated water quality
      ph(25°C) 5.8～8.0
      Electric conductivity (ms/m) 3 or less
      Acid consumption (mg/L) ＜1
      Total hardness (mg/L) ＜1
      Ionic silica (mg/L) ＜2
      Chloride ion (mg/L) ＜1
      Total iron (mg/L) ＜0.05
      Total copper (mg/L) ＜0.01
      Sulfate ion (mg/L) ＜0.5
      Ammonium ion (mg/L) ＜0.01
      Total residue on evaporation (mg/L) ＜10
      General bacteria (/ml) ＜100

Upon installation, we will provide you with the optimal solutions based on detailed consultations.
Please contact us if you have any questions.
