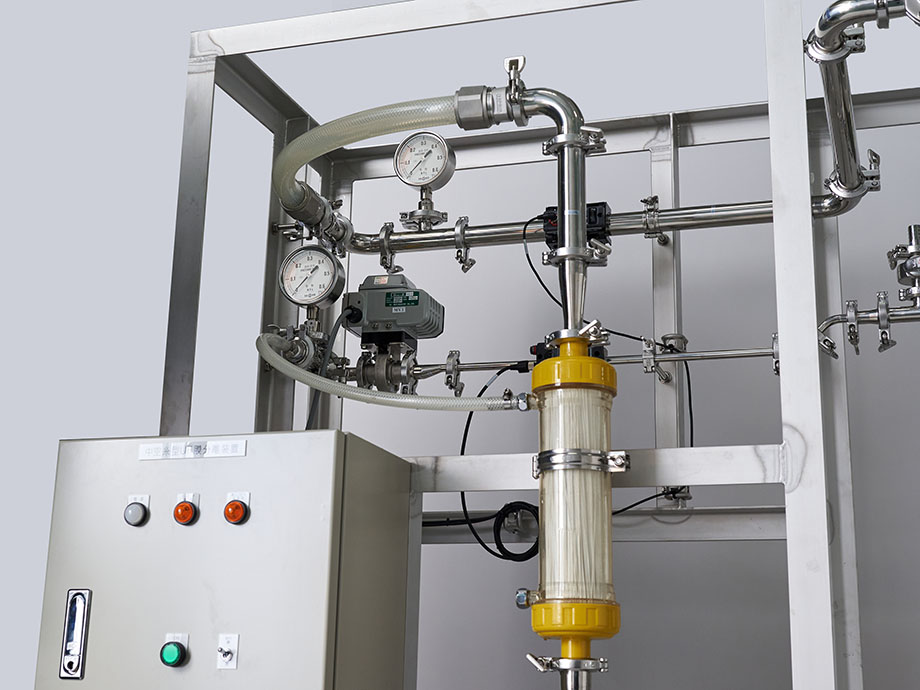

Hollow fiber UF membrane separation system
MSS series

For various liquid treatment processes, including filtration, separation, concentration, and purification

We have released simple membrane treatment systems with a single UF membrane module.
These are entry-level models of membrane treatment systems developed by DAICEN, which has specialized in organic separation membranes for more than half a century.
Customers who have confirmed the applicability of membrane treatment through small-scale evaluations are encouraged to use the MSS series as the next step in their evaluation. It can be used not only for continuous research and evaluation, but also for low-volume production.

Contact

Mechanism

The MSS series is capable of handling all kinds of liquid treatment processes, including concentration, separation, purification, and filtration.
The role of each line within the system varies depending on the desired treatment operation.

Concentration

Only substances larger than the molecular cut-off of the separation membranes remain , while small impurities such as ions and water molecules are removed. This results in the concentration of only large substances.

Separation

By using a separation membrane module with a molecular cut-off suitable for separating the desired substances, substances mixed in a liquid are separated based on their size differences.

Purification

By adding water to the undiluted solution to keep the polymer on the concentrated liquid side, ions and low-molecular-weight substances are permeated to the filtrate side to increase the purity of the polymer.

Filtration

The separation membrane treatment in the UF range removes polymeric impurities, turbidity, bacteria, and viruses, enabling clarification and disinfection of the filtrate.

Features

  • 01

    Two types available

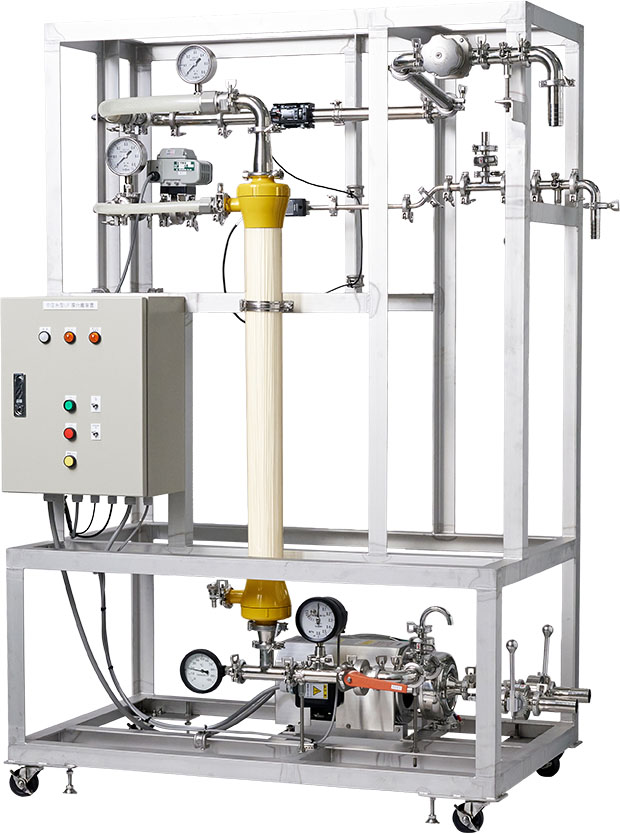

    SM types for chemicals and food products

    • Recommended for those who need chemical and heat resistance.
      A safe sanitary system.
      • SUS304 piping
      • Sanitary type
      • Filtration capacity: 2 stages
      • With interlock

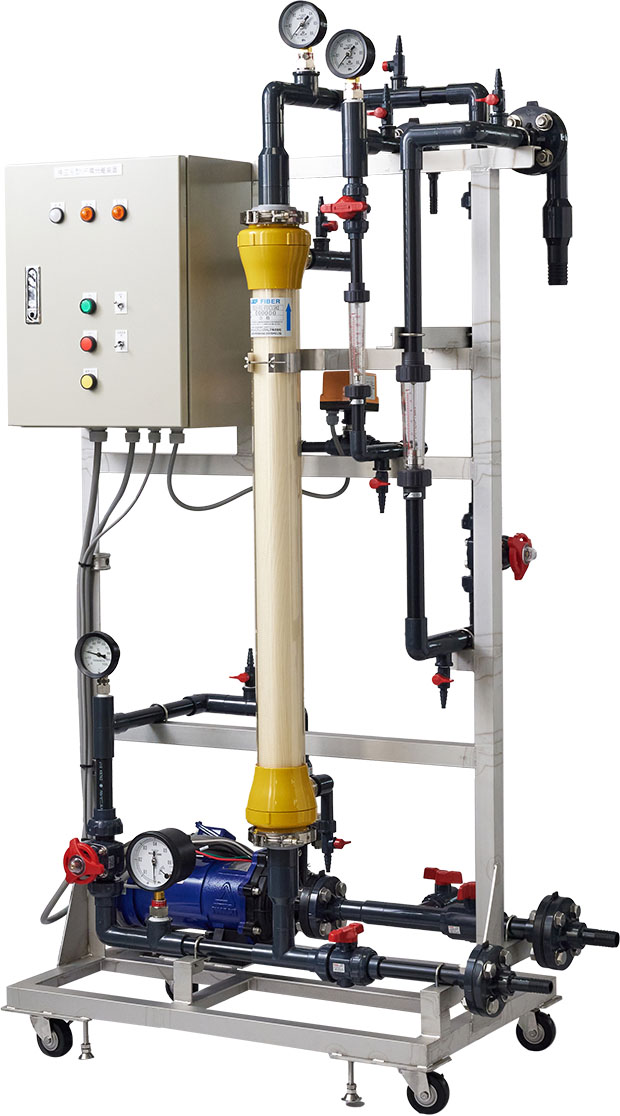

    PM type for fisheries and water treatment

    • Ideal for those who want to keep initial costs down.
      System with seawater-resistant PVC.
      • PVC piping
      • Seawater-resistant pump
      • Filtration capacity: 3 stages
      • With interlock

  • 02

    Manual operation for versatile applications

    Highly versatile and adaptable for various treatment processes! Also ideal for research environments where operating conditions need to be adjusted for verification.
    Can also be used as a whole quantity filtration device by closing the valve.

    • ＊If an automatic operation model is needed, it is available for an additional fee.

  • 03

    Cross-flow filtration equipment utilizing advantages of hollow fiber membranes

    Due to the scraping effect of the internal pressure hollow fibers, the membranes are unlikely to clog.

  • 04

    Single-membrane-module system suitable for introducing membrane treatment for the first time

    Space-saving with a minimum of 1m × 1m.
    Portable system with casters, enabling movement according to the application.

  • 05

    Cost-effective system designed by a membrane manufacturer

    Cost savings were realized by adopting a standard component design.
    The UF membrane module can be cleaned and reused repeatedly.

    • ＊If design change or automatic operation is needed, an additional design fee will apply.

Applications

  • As research or laboratory equipment

  • For pilot evaluation and pre-production

  • For seasonal production and high-mix, low-volume production

Flow diagram and external dimensions of the MSS series

  • SM type
  • PM type

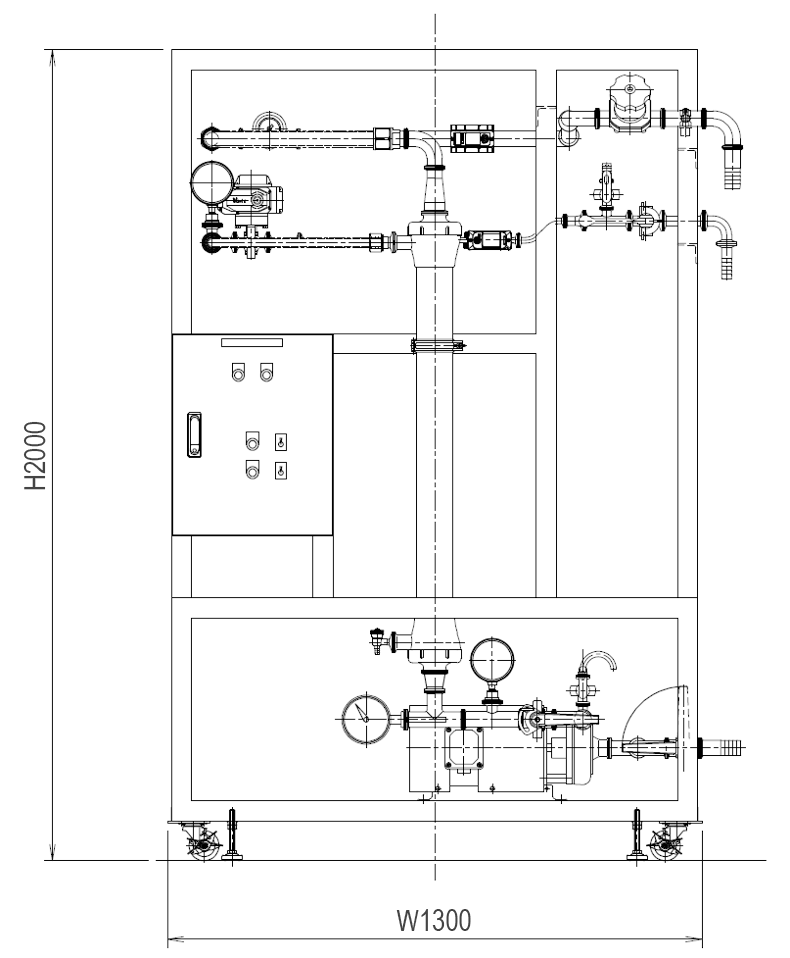

    • External Dimensions

      • ＊The MSS-F10 SM and MSS-F03 SM have the same external dimensions. Refer to the specification table for dimensions.

    • Flow Diagram

      • ＊The interlock activates when the inlet pressure of the membrane module exceeds a certain value.
      • ＊The SM types have the same flow diagram.
      • ＊When options are included, we will prepare a flow diagram separately.

    • External Dimensions

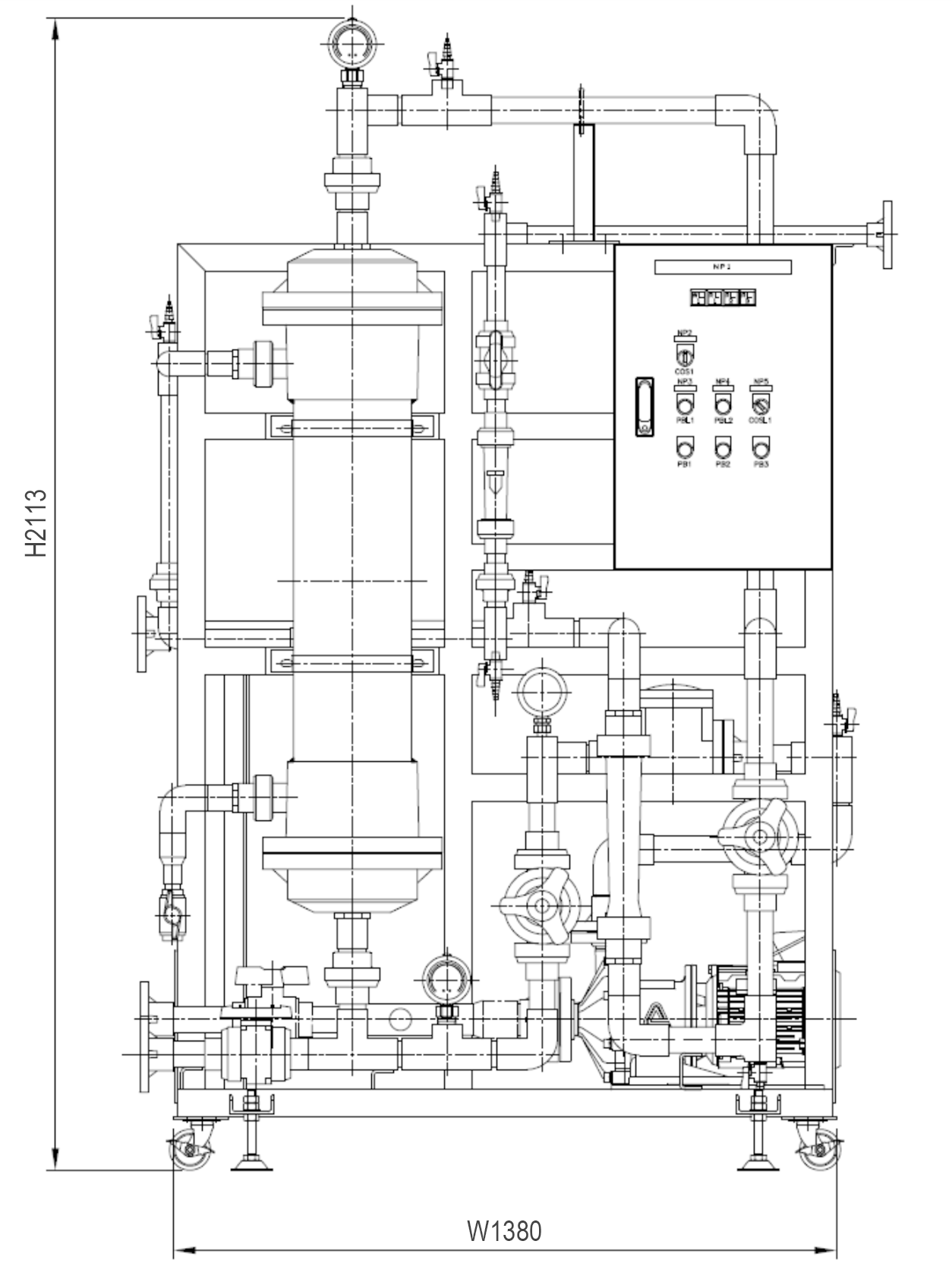

      • MSS-F20-PM

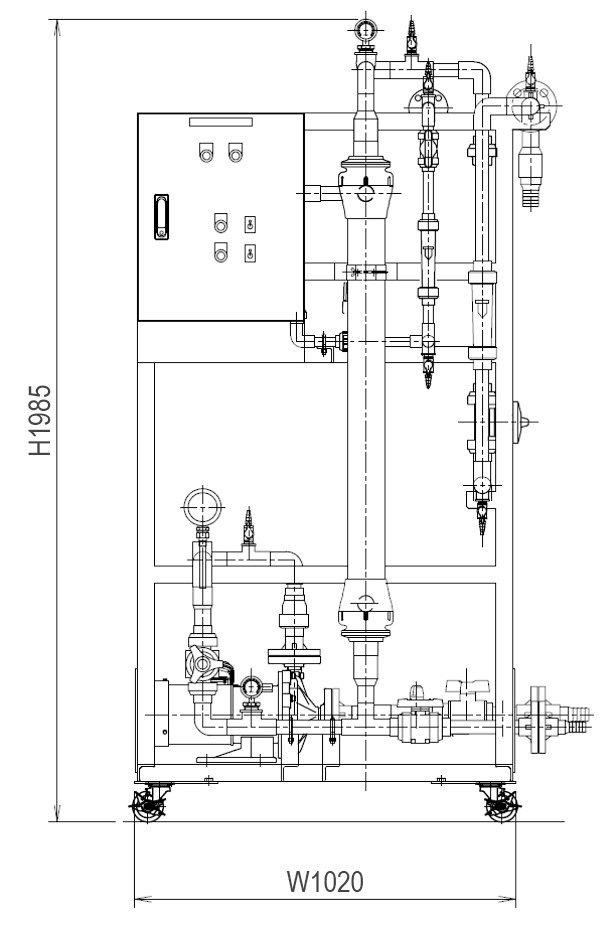

      • MSS-F10(F03)-PM

    • Flow Diagram

      • ＊The interlock activates when the inlet pressure of the membrane module exceeds a certain value.
      • ＊When options are included, we will prepare a flow diagram separately.

Specifications

  • SM type
  • PM type
  • Item MSS-F10-SM MSS-F03-SM
    Applicable modules FS10-FC-FUS0181
    FS10-FC-FUS0353
    FS10-FC-FUS0382
    FS10-FC-FUS1582
    FS10-FC-FUS5082
    FS10AFC-FUS0181
    FS10-FC-FUST653
    FS10-FC-FUY15E1         		FS03-FC-FUS0181
    FS03-FC-FUS0353
    FS03-FC-FUS0382
    FS03-FC-FUS03C1
    FS03-FC-FUS1582
    FS03-FC-FUS5082
    FS03AFC-FUS0353
    FS03-FC-FUST653
    FS03-FC-FUY03A1
    Dimensions (mm) W1300×D820×H2000
    Components Raw water pump (with Inverter), frame (with casters), piping (SUS304, fluororesin hose), valves, pressure gauge, flowmeter, thermometer, control panel
    Raw water flow rate ＊1 1.9～3.8㎥/hr
    Filtered water flow rate＊2 1.7～4.4㎥/hr 0.4～0.6㎥/hr
    Minimum operating liquid volume＊3 20～30L
    Power source 200V　Φ3　50/60Hz
    Operating method Manual operation (with backwash function and interlock)
    Optional facilities and functions
    (additional fee)    		 - Raw water tank (concentration tank)
    - Filtration water tank
    - Reverse pressure cleaning function (cleaning equipment set: backwash pump, piping, valves, pressure gauge, flow meter, etc.)
    - Automatic operation control
    • ＊1　Reference value for operation at a membrane surface velocity of 0.5 to 1.0 m/s
    • ＊2　Reference value for filtering the entire volume of pure water at an inlet pressure of 0.1 MPa and a water temperature of 25 °C
    • ＊3　The minimum operating liquid volume refers to the minimum amount of undiluted solution required for the system operation, and differs depending on the tank used.
  • Item MSS-F20-PM MSS-F10-PM MSS-F03-PM
    Applicable modules FN20-VP-FUC1582
    FN20-VP-FUC1583
    FN20-VP-FUS0382
    FN20-VP-FUS1582
    FN20-VP-FUS5082
    FN20-VP-FUY03A1
    FN20-VP-FUY15E1
    FN20 Housing         		FE10-FC-FUC1582
    FE10-FC-FUST653
    FE10-FC-FUS0181
    FE10-FC-FUS0353
    FE10-FC-FUS0382
    FE10-FC-FUS03C1
    FE10-FC-FUS1582
    FE10-FC-FUS5082
    FE10-FC-FUY03A1
    FE10-FC-FUY15E1         		FS03-FC-FUS0181
    FS03-FC-FUS0353
    FS03-FC-FUS0382
    FS03-FC-FUS03C1
    FS03-FC-FUS1582
    FS03-FC-FUS5082
    FS03AFC-FUS0353
    FS03-FC-FUST653
    FS03-FC-FUY03A1
    Dimensions (mm) W1380×D700×H2113 W1020×D570×H1985
    Components Raw water pump (Seawater-Resistant), frame (with casters), piping (PVC), valves, pressure gauge, flowmeter, thermometer, control panel
    Raw water flow rate＊1 6.7～13.3㎥/hr 1.9～3.8㎥/hr
    Filtered water flow rate＊2 5.1～13.3㎥/hr 1.7～4.4㎥/hr 0.33～0.55㎥/hr
    Minimum operating liquid volume＊3 30～40L 20～30L
    Power source 200V　Φ3　50/60Hz
    Operating method Manual operation (with backwash function and interlock)
    Optional facilities and functions
    (additional fee)    		 - Raw water tank (concentration tank)
    - Filtration water tank
    - Reverse pressure cleaning function (cleaning equipment set: backwash pump, piping, valves, pressure gauge, flow meter, etc.)
    - Automatic operation control
    • ＊1　Reference value for operation at a membrane surface velocity of 0.5 to 1.0 m/s
    • ＊2　Reference value for filtering the entire volume of pure water at an inlet pressure of 0.1 MPa and a water temperature of 25 °C
    • ＊3　The minimum operating liquid volume refers to the minimum amount of undiluted solution required for the system operation, and differs depending on the tank used.

Upon installation, we will provide you with the optimal solutions based on detailed consultations.
Please contact us if you have any questions.
